Chemical Pump Product

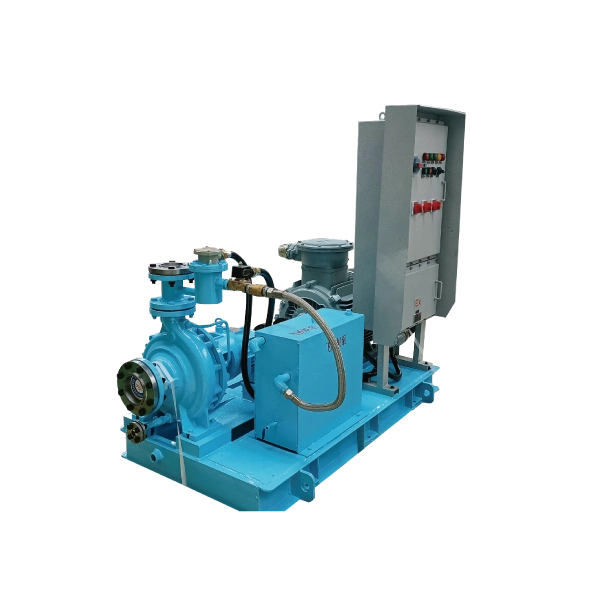

Self-Priming Petrochemical Process Pump
API 610 compliant self-priming petrochemical process pump for reliable transfer of corrosive, high-temperature, and industrial process fluids across demanding applications.
Back to Chemical Pump
Description
Product Overview
This series of pumps is a petrochemical process pump designed according to API610 specifications. The pump is a single-stage, horizontal radial split volute pump, with the pump body supported by feet. Single suction radial impeller, axial suction, radial discharge. According to the usage conditions, use front and rear wear rings and balance holes for hydraulic balance. The packing box has cooling or heating pipe joints. The shaft seal adopts a containerized single end face or double end face seal. And equipped with cooling flushing or sealing system. The sealed pipeline is designed according to API specifications. The rated pressure rating of the suction and discharge pipe flanges is the same. From the motor end, the pump rotates clockwise.
Technical Specifications
Designed to API 610 specifications, this self-priming petrochemical process pump delivers reliable operation for tank unloading, process transfer, and industrial fluid handling services.
Materials Used
The pump body and overcurrent components are made of high-quality stainless steel or carbon steel, and the seals are made of high-quality mechanical seals to ensure reliability under complex working conditions. The selection of materials can meet the requirements of high temperature, high pressure, and corrosive media.
Scope of Application
1. Petrochemical industry
Refinery: used for transporting media such as crude oil, refined oil, and acid-base solutions.
Chemical production: Transport corrosive liquids such as sulfuric acid, hydrochloric acid, hydrofluoric acid, etc.
Liquid tank pumping and tank truck unloading: Its rapid self-priming ability makes it suitable for liquid loading and unloading.
2. Pharmaceutical industry
Liquid medicine delivery: used for delivering high viscosity and corrosive liquid medicines to ensure the continuity and stability of the production process.
3. Environmental protection and sewage treatment
Sewage pumping: used for transporting sewage and sludge containing solid particles.
Desulfurization and dust removal: used in the desulfurization system of thermal power plants to transport slurry.
4. Power industry
Cooling water circulation: used to transport cooling water to ensure the normal operation of equipment.
Desalination of seawater: used for transporting seawater and other corrosive liquids.
5. Food and beverage industry
Liquid transportation: used for transporting liquids such as fruit juice and edible oil to meet the hygiene requirements of food production.
6. Other industrial sectors
Mining and Metallurgy: Used for transporting highly abrasive media such as slurry and tailings slurry.
Paper industry: used for conveying pulp and other corrosive media.
Structure
The pump is a single-stage, horizontal radial split volute pump, with the pump body supported by feet. Single suction radial impeller. Axial suction, radial discharge. According to the usage conditions, use front and rear wear rings and balance holes for hydraulic balance. The packing box has cooling or heating pipe joints. The shaft seal adopts a containerized single end face or double end face seal. And equipped with cooling, flushing or sealing systems. The sealed pipeline is designed according to API specifications. The rated pressure rating of the suction and discharge pipe flanges is the same. From the motor end, the pump rotates clockwise.
About Us
The history of Jiangsu Feiyue goes back to 1957. We serve our customer with excellent industrial pump solutions and help to achieve a satisfied operating cost for their facilities. Our key value is to ensure customers are content with our products.
We have complete manufacturing facilities from R&D, casting, machining, assembly to quality control. We have got certificates of ISO9001, ISO14001, OHSAS18001, API, CE and passed TUV factory inspection.
The main industrial applications of our pumps are general water industries, general industrial process, power plants, chemical plants, mining, oil and gas, sea water treatment, and petrochemical engineering.
The main materials include cast iron, carbon steel, stainless steel, duplex stainless steel, titanium, monel alloy, Hastelloy, high-chromium alloy, polypropylene, FRPP, and UHMWPE.
Workshop
Certifications
Our Team
Packaging & Transportation
Why Choose Us
What can we do for you?
Whether you are looking to purchase products or need professional advice from experts in Feiyue Pump Industry, we are more than happy to provide technical support for pump solutions.
Want to learn more about product specifications and application scenarios? Please send us your requirements, and our engineers will provide a professional solution within 12 hours.
Do you have any questions about after-sales service? Feel free to contact our engineering team for detailed answers and professional technical support.
Other Products
Related chemical pump products
.webp)
.webp)
FAQ
Frequently Asked Questions
What is a self-priming petrochemical process pump?
A self-priming petrochemical process pump is an API 610 compliant horizontal centrifugal pump designed to draw liquid into the pump casing without external priming assistance, making it suitable for tank unloading, intermittent suction, and petrochemical process duties.
What flow and head range does this pump cover?
The pump covers a flow range of 0.8 to 400 m³/h and a head range of 16 to 250 m, supporting a wide range of industrial transfer applications.
What operating temperature can this pump handle?
The working temperature range is from -80℃ to 450℃, allowing use in low-temperature and high-temperature process services with appropriate material selection.
What industries use self-priming petrochemical process pumps?
These pumps are widely used in petrochemical plants, refineries, pharmaceutical production, environmental protection, sewage treatment, power plants, food and beverage processing, mining, metallurgy, and paper mills.
Can the pump handle corrosive and abrasive media?
Yes. The pump body and wetted components can be supplied in high-quality stainless steel or carbon steel with mechanical seals selected for corrosive, high-pressure, and high-temperature operating conditions.
Is this pump designed according to API 610?
Yes. This series is designed according to API 610 specifications, including containerized mechanical seal arrangements, API-designed sealing systems, and matched suction and discharge flange pressure ratings.
Can FEIYUE provide customized pump solutions?
Yes. FEIYUE can customize materials, sealing systems, hydraulic configurations, and auxiliary systems according to project requirements and operating conditions.
